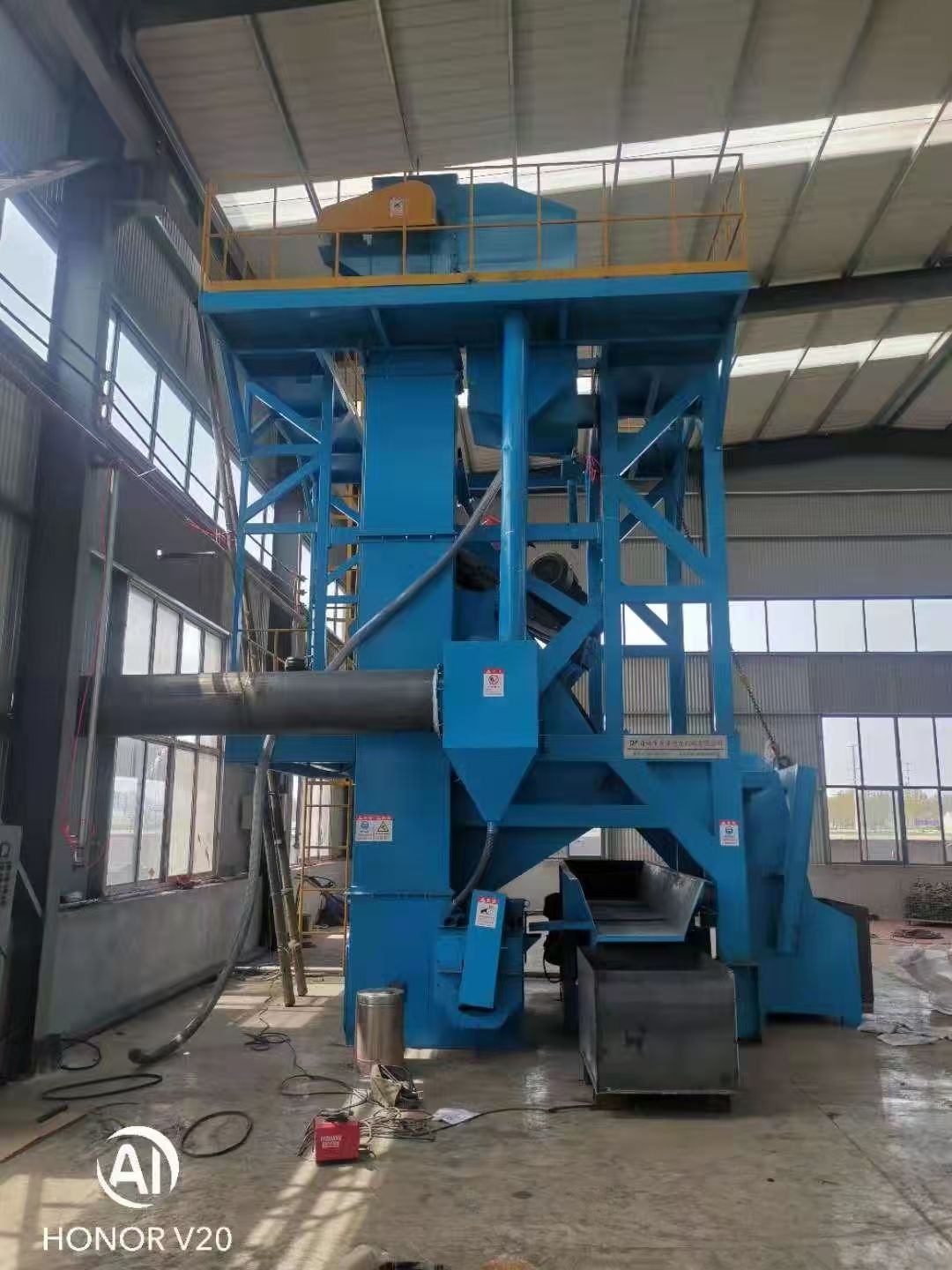

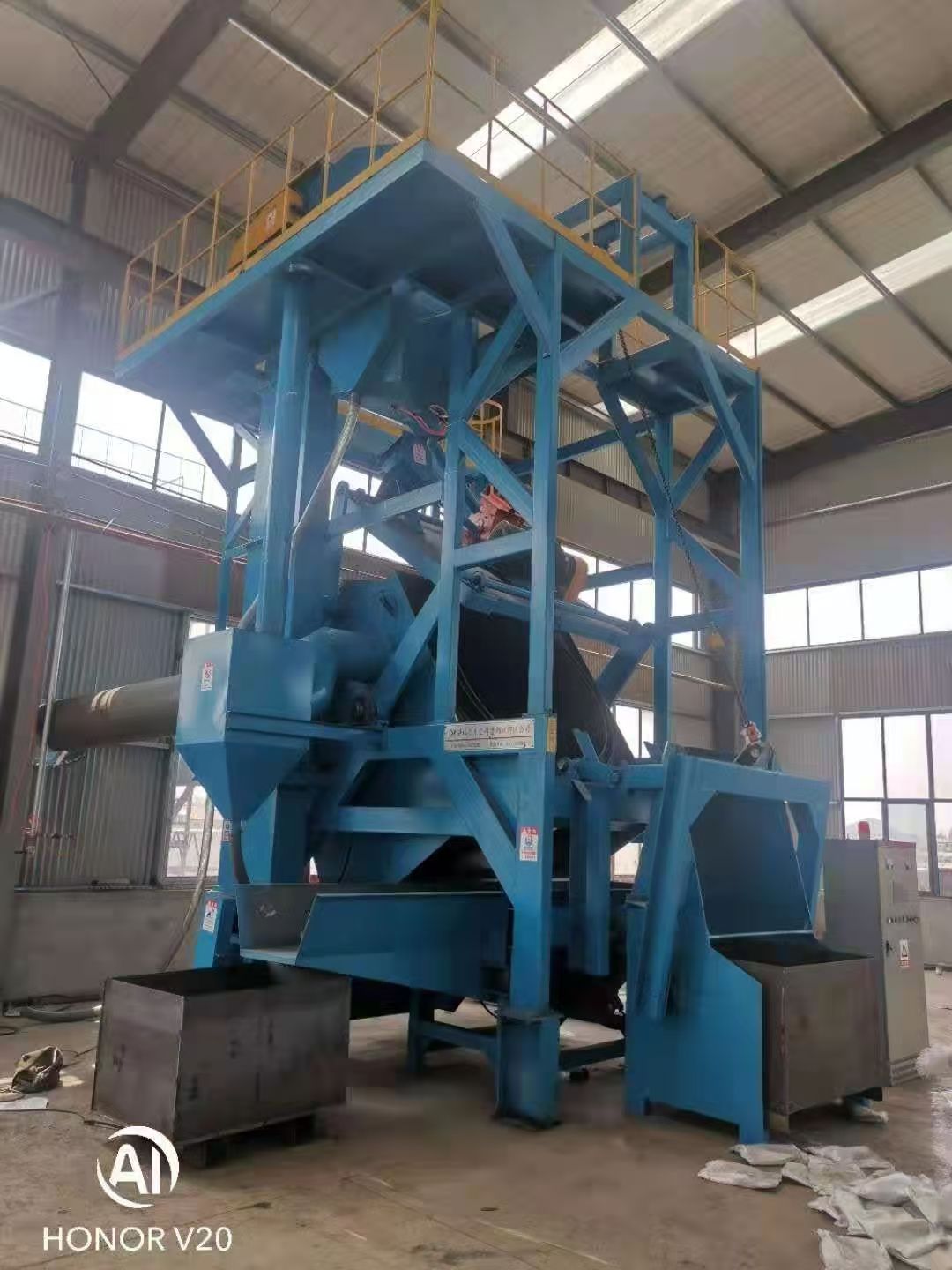

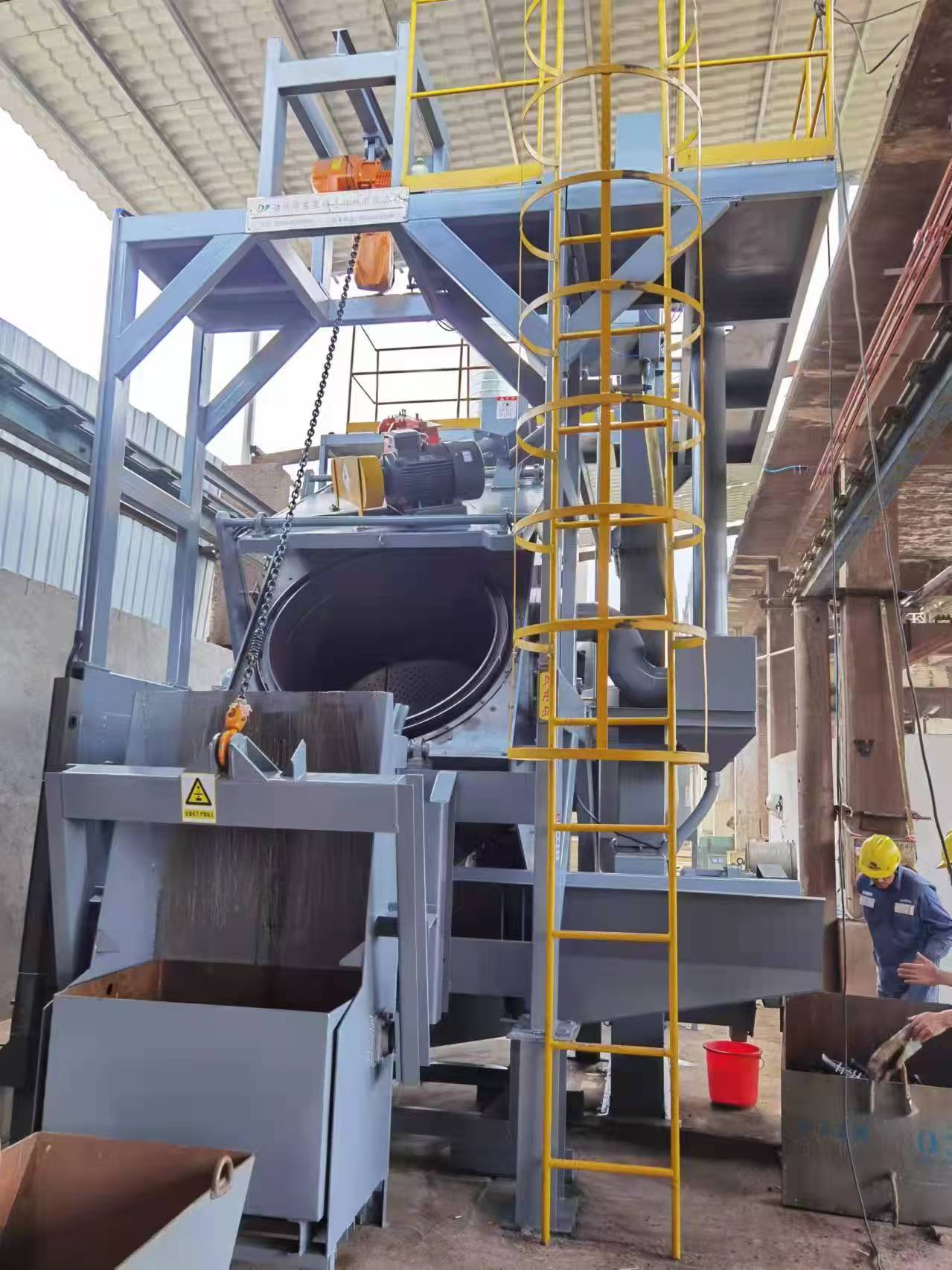

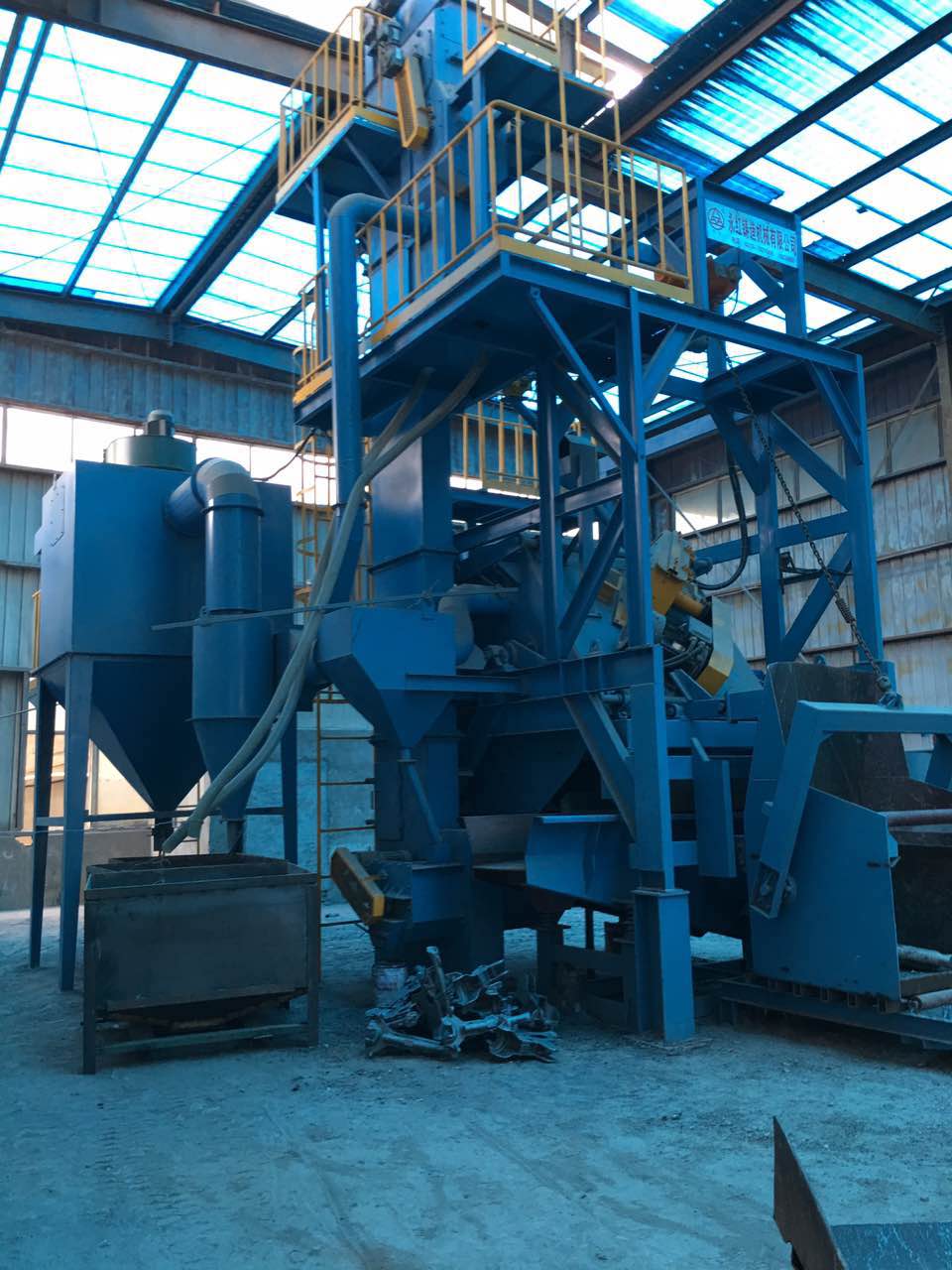

GT Series Inclined Drum Shot Blasting Machine
Efficient and uniform cleaning effect.
Thin and small special parts can also be processed.
Simole and accurate inout and discharoe.
Simple maintenance.
Product Details
Efficient and uniform cleaning effect.
Adopt the unique roller rocking structure of our company. During shot blasting, the roller can not only rotate but also shake up and down. Therefore, the product in the cylinder is completely stirred, achieving a uniform cleaning effect.
Thin and small special parts can also be processed.
The shot blasting chamber has a unique construction. It can clean general castings and forgings. Even thin and small special parts can be processed without damage.
Simple and accurate input and discharge.
Due to automatic smooth movement, the workpiece will not be scratched. Capable of gentle and complete input and discharge, easy to operate.
Simple maintenance.
Simple structure of drum and body. Therefore, it can reduce vulnerable and consumable parts, saving maintenance time and costs.
Product Specifications
| Item | Unit | QGT700 | QGT1000 | QGT1500 |
|---|---|---|---|---|
| Drum Size | mm | Φ700 × 800 | Φ1000 × 1065 | Φ1500 × 1600 |
| Drum Max. Weight Capacity (Easy Parts) | kg | 60–150 kg | 200–400 kg | 800–1500 kg |
| Productivity | t/h | 0.3–1 t | 1–2 t | 4–8 t |
| Drum Rotate Speed | r/min | 7.1 r/min | 4.2 r/min | 3 r/min |
| Blast Wheel Model | / | Q036 | Q037 | Q038 |
| Abrasive Flow Rate | kg | 1 × 120 kg | 1 × 380 kg | 1 × 480 kg |
| Machine Power | kW | 15 kW | 35 kW | 50 kW |
Product Applications
Used for surface cleaning of various medium and small castings, forgings, stampings, and heat-treated parts, rust removal and strengthening. More friendly for thin and small special parts. This is beyond the reach of conventional crawler shot blasting machines.
